Gridwall Displays: How They’re Used, Pros & Cons, and How to Spec One That Holds
Gridwall is one of the most flexible retail fixtures: hooks, shelves, baskets and sign holders can be moved across an open metal grid. The real difference between a durable panel and a cheap one is in the wire gauge, 25.4 mm pitch, weld quality, frame, base and connectors. At Formost, a custom gridwall panel manufacturer, we spec the gauge, 25.4 mm pitch, frame, and connectors to the load a panel must hold.
Short Answer
Gridwall’s value is simple: connect it, hang it and change it in almost any configuration. Panels can mount on walls, stand on the floor, connect into islands or gondolas, and work single- or double-sided. It can generally be designed for higher point loads than a comparable pegboard and is more flexible than slatwall, but it has a more industrial appearance and an open backing.
A grid panel that holds comes down to three things: wire gauge, normally 3-4 mm; a 25.4 mm (1 inch) pitch; and sound spot welds at every intersection.
1. How Gridwall Is Used
Gridwall’s flexibility shows in the number of configurations it supports:
- Wall-mounted: panels fixed to a wall as a back-wall display.
- Freestanding: single- or double-sided floor fixtures on a base, weighted foot or casters.
- Connected: panels joined into L-shapes, U-shapes, islands or gondolas.
- Countertop: smaller grids for compact merchandising.
- Accessory-based: hooks, shelves, brackets, sign holders and baskets can be placed across the grid.
Pegboard and slatwall act mainly as surfaces. Gridwall acts as a modular metal net: it connects, stands, goes double-sided and can roll.
2. Gridwall Pros and Cons
| Factor | Practical Effect |
|---|---|
| Pros | Highly modular; hooks and shelves can move at any time; wall or floor use; panels connect into larger units; double-sided layouts are possible; the open grid does not block light; metal construction is durable and powder-coatable. |
| Cons | More industrial in appearance than slatwall; no solid backing for full-bleed graphics; needs gridwall-specific hooks; and is generally heavier than pegboard. |
How to Choose
- Choose gridwall for flexibility, real load, floor-standing, connected or double-sided applications.
- Choose slatwall when a premium flat backdrop is the priority.
- Choose pegboard for a light, dense-hole flat panel. See our Pegboard vs Slatwall guide.
3. How to Specify a Grid That Holds
3.1 Wire Gauge: 3-4 mm Is the Economic Sweet Spot
A grid’s load and rigidity are set first by its wire gauge. In practical retail fixtures, the wire is normally not thinner than 3-4 mm. This range is not simply over-specification; it is often the most economical balance of strength and cost.
Wire cost includes material plus a straightening-and-cutting processing fee. When wire becomes thinner, the material saving gets smaller while the processing fee stays broadly similar. Dropping from 3 mm toward 2 mm can therefore save very little while giving up significant rigidity. Below the 3-4 mm range rarely pays for a load-bearing retail grid.
Factory judgment: do not reduce wire gauge below the practical sweet spot just to save material. The saving may be minor, while panel sag and weld sensitivity increase.
3.2 The 25.4 mm Pitch and Standard Panel Sizes
Formost panels use a 25.4 mm (1 inch) grid pitch, a widely used gridwall format, so commonly available 1-inch gridwall hooks, baskets and shelves fit. A non-standard pitch can lock the buyer into custom accessories and make later replacement difficult.
Common panel sizes run from 2 ft x 4 ft to 2 ft x 8 ft, approximately 610 x 1220 mm to 610 x 2440 mm. Standard pitch and standard sizes usually reduce setup, cost and lead time. Custom dimensions remain possible when the merchandising program genuinely needs them.
3.3 Weld Quality: Hundreds of Intersections
A grid panel is spot-welded at every wire crossing, so one panel may contain hundreds of welds. Under-fused or cold welds can let the grid open, distort or sag under load. Burred welds can also catch hands or merchandise.
The production logic is the same as for a wire basket: weld settings must match the wire gauge, joints should be clean and burr-free, and checks must cover the full panel. Our Wire Basket Safety & Finish note explains the same welding and burr-control principles.
3.4 Frame, Base, Connectors and Powder Coating
- Frame: a border frame increases overall panel rigidity.
- Floor stability: a freestanding unit depends on its base or weighted foot to resist tipping. See our base hardware and caster guide.

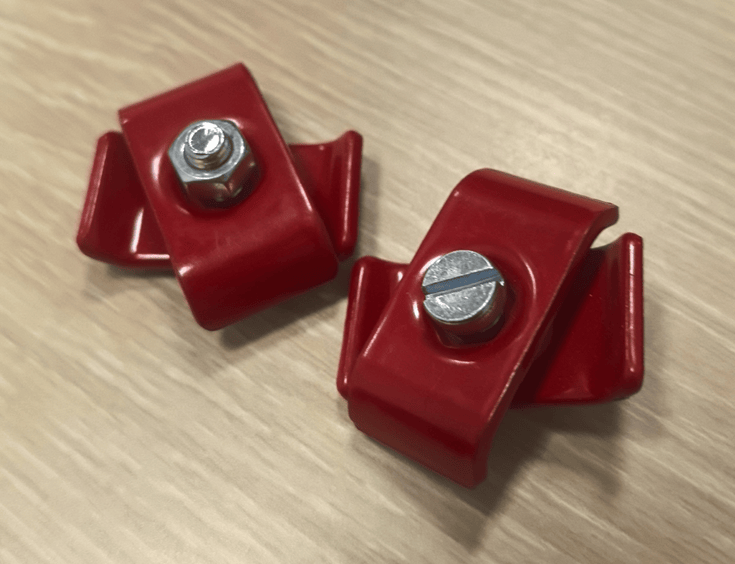

- Connector strength: multi-panel runs depend on the connectors; loose connectors make the full fixture wobble.
- Powder coating: the coating protects the panel, welds and hardware. See our surface treatment guide.
Questions to Ask a Gridwall Supplier
| Question | What a Useful Answer Should Cover |
|---|---|
| What wire gauge is used? | Normally 3-4 mm for a practical balance of strength and cost, with the gauge matched to the hanging load. |
| Is the pitch and panel size standard? | 25.4 mm pitch and common 2 ft x 4 ft to 2 ft x 8 ft sizes where possible, so standard gridwall accessories remain compatible. |
| How are welds controlled? | Weld settings matched to the gauge, clean burr-free intersections and inspection across the panel. |
| How does the unit resist tipping? | Base geometry, weighting, casters or leveling hardware, plus connector strength for multi-panel layouts. |
Formost reviews the panel, frame, base, connectors, surface finish and gridwall accessories as one system rather than treating the wire grid as an isolated component.
Frequently Asked Questions
How can gridwall be used?
Gridwall can be wall-mounted, freestanding, single- or double-sided, placed on casters, joined into L-shapes, U-shapes, islands or gondolas, or made as a countertop mini-grid. Hooks, shelves, brackets, sign holders and baskets can be placed across the panel.
Gridwall, pegboard or slatwall: how do I choose?
Choose gridwall for modular layouts, real hanging load, floor-standing or double-sided use; slatwall for a premium flat backdrop; and pegboard for a light, dense-hole flat wall panel.
What wire gauge should a gridwall panel use?
For practical retail fixtures, wire is normally in the 3-4 mm range. This range often gives the best balance of load capacity, rigidity and processing cost. Going below it may save little material while reducing strength.
What is the standard gridwall pitch and panel size?
The normal pitch is 25.4 mm (1 inch), allowing standard hooks and accessories to fit. Common panel sizes range from 2 ft x 4 ft to 2 ft x 8 ft, although custom dimensions are possible.
How do I judge whether gridwall is welded well?
A panel contains hundreds of spot welds. Good production uses weld settings matched to the wire gauge, clean burr-free joints and inspection across the panel. Under-fused welds can let the grid open, distort or sag.
Can Formost make custom gridwall displays?
Yes. Formost can set the wire gauge, pitch, frame, base, connectors, accessories and coating around the required load, dimensions and merchandising program, including wall-mounted, freestanding, connected, double-sided and mobile versions.
